Zetron Gm3100 Methane Gas Leak Detector Multifunctional Infrared

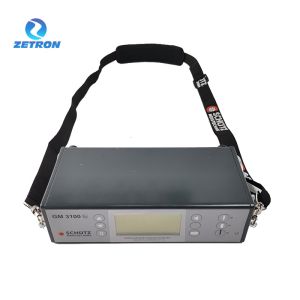

GM3100 Handheld Gas Leak Analyzer

OVERVIEW

The GM 3100 is an all-in-one instrument for leak detection and primary line detection. Using new infrared measurement technology, the instrument accurately identifies natural gas and CO2, eliminating cross-sensitivity issues.

FEATURE

1. Multi-functional application

- Gas leak detection in pipeline networks

- Locating leak points through probe holes

- Measurement of the concentration in the pipeline

2. Compensated CH4 and CO2 measurement

3. Probes

- Trolley-type probe: suitable for census work on flat roads and asphalt, can exclude such as car exhaust and other exhaust gas interference, the probe uses filters, filter hoses, and connectors, equipped with rollers to move aspects, used for census gas pipeline network, along the path of probing.

- Bell-type probe: used to probe the gas leakage concentration of soft underground pipelines such as lawn, equipped with probe and hose two-stage filter, suitable for census of gas pipeline network using pumping method on the part of flat road
- Telescopic probe: this probe can be bent at will, and used to accurately measure the gas concentration of difficult-to-access pipelines, such as the 2-meter range of overhead pipelines or pipeline flange joints, etc.
- Conical probe: used for borehole positioning measurement, built-in water separator can prevent the inhalation of water vapor in the pipe, vertebrae 30CM or 55CM for deeper borehole gas monitoring work.

TECHNOLOGY PARAMETER

Display	Graphical LCD display with automatic illumination
Pump	1 ppm
Sensitivity	Diaphragm pump with an adjustable flow rate
Gas type	Methane, Hydrogen, Carbon monoxide Oxygen, Hydrogen sulfide
Measuring range	0-10ppm0-20ppm0-100ppm0-1000ppm (vol.%) 0-1 vol.%0-10vol.%0-100vol.%
Temperature range	-20'C~+40'C
Protection class	IP 54
Operating time	15 hours of normal use
Dimensions	215x100x60mm
Weight	1.8 kg
